Product Detail

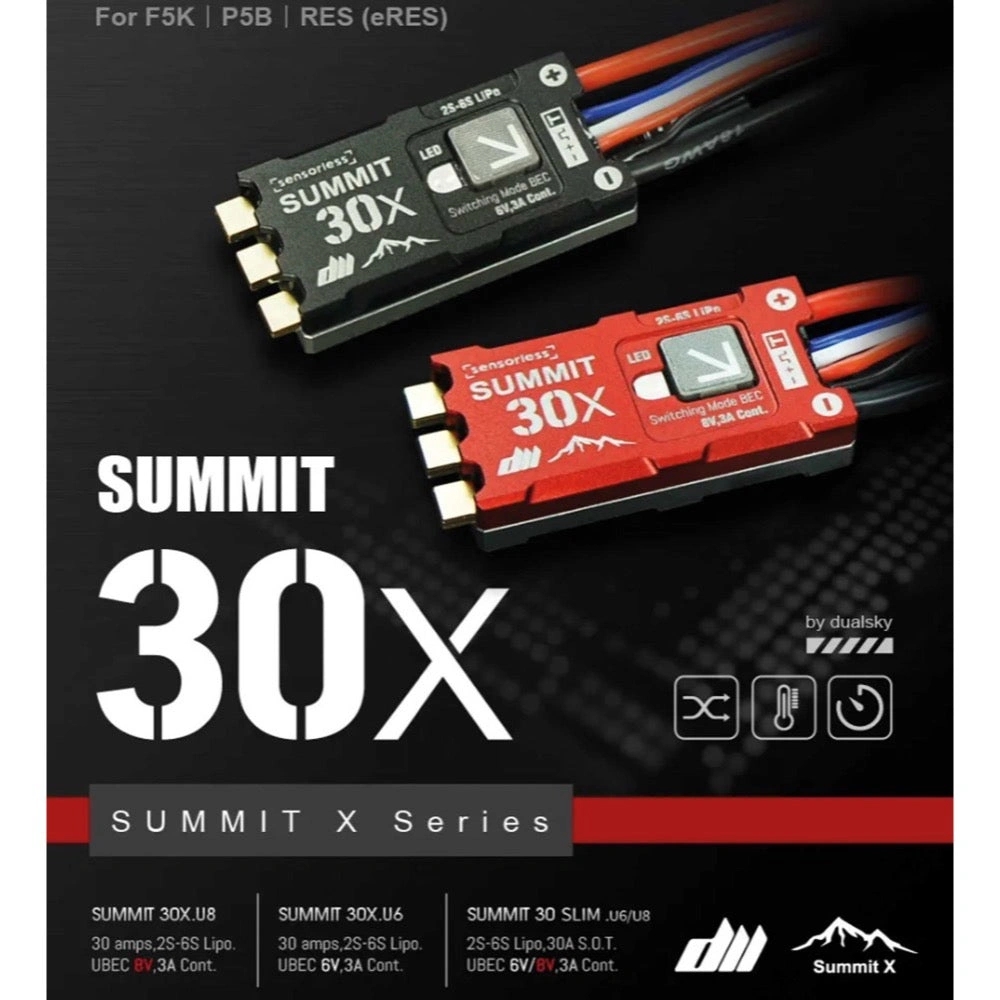

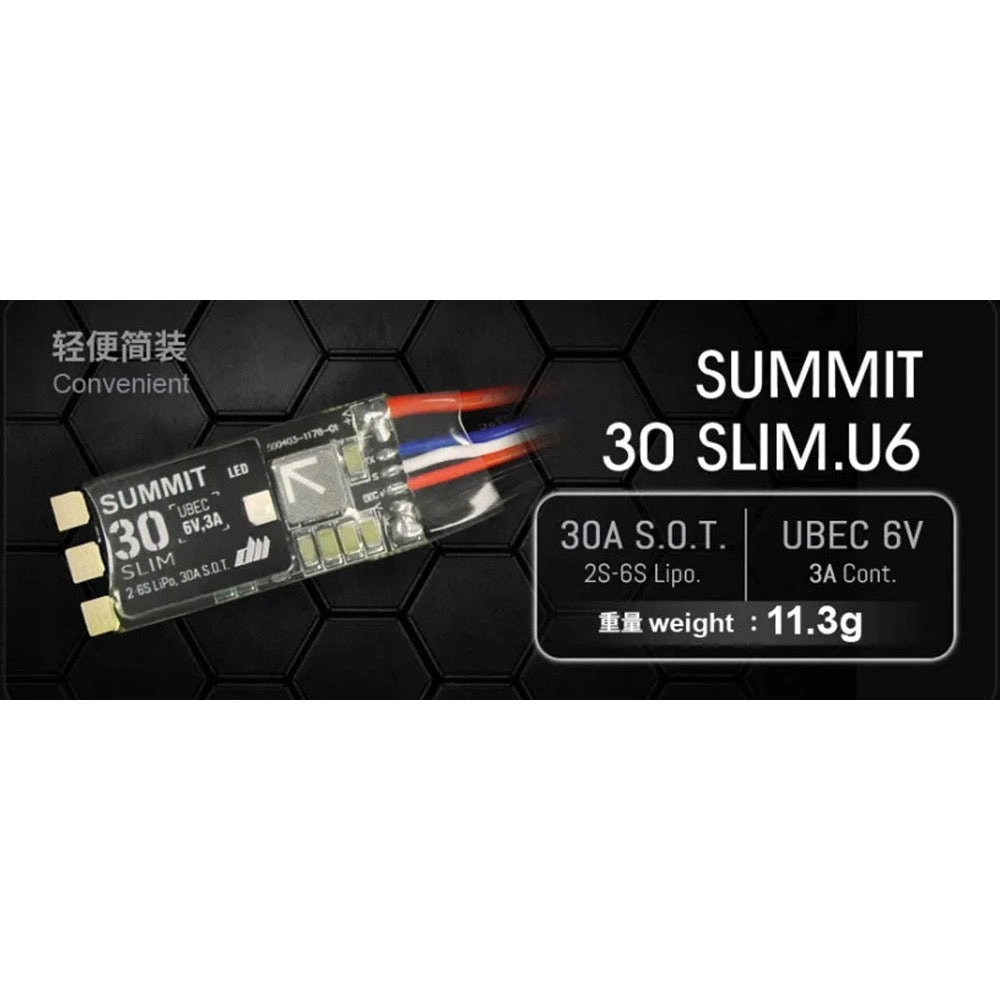

The new Dualsky SUMMIT 30 SLIM 6V SBEC ESC is the latest 25A lightweight speed control from this excellent manufacturer. This speed control works flawlessly with all brushless motors, not just Dualsky motors.

The speed control is supplied with the brake ON, so no programming is required for glider use. Solder the brushless motor wires directly to the three PCB lands. Swap any two wires to reverse the direction.

Features

• Summit X series ESC is designed for superior functionality and performance, primarily in multirotors and runs on ARM 32bit MCUs.
• All codes implement damped light mode as default.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

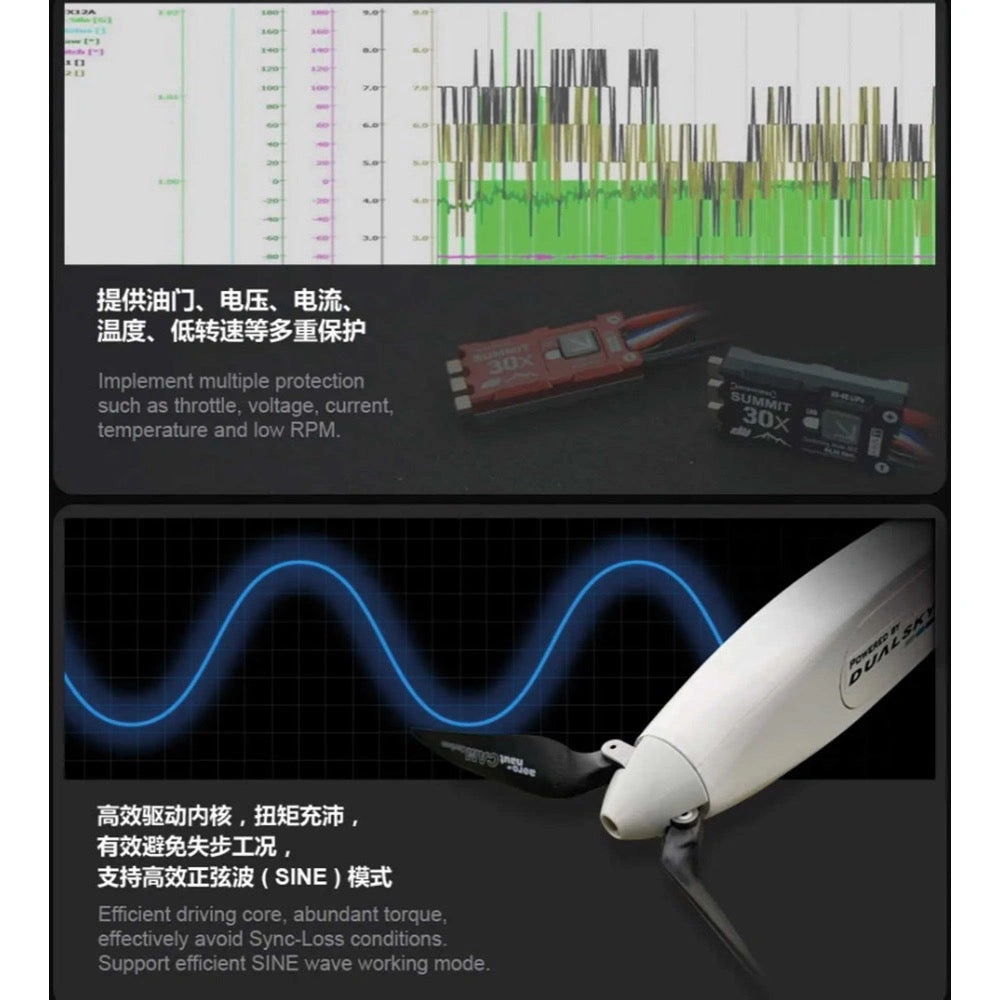

• The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
• The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250?s), Oneshot42 (41.7-83.3?s) and Multshot (5-25?s). Dshot is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up. ? The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

Specification

• Cells (LiPo): 2-6
• Current duration (A): 25
• Max current (A): 40
• Weight (g): 12

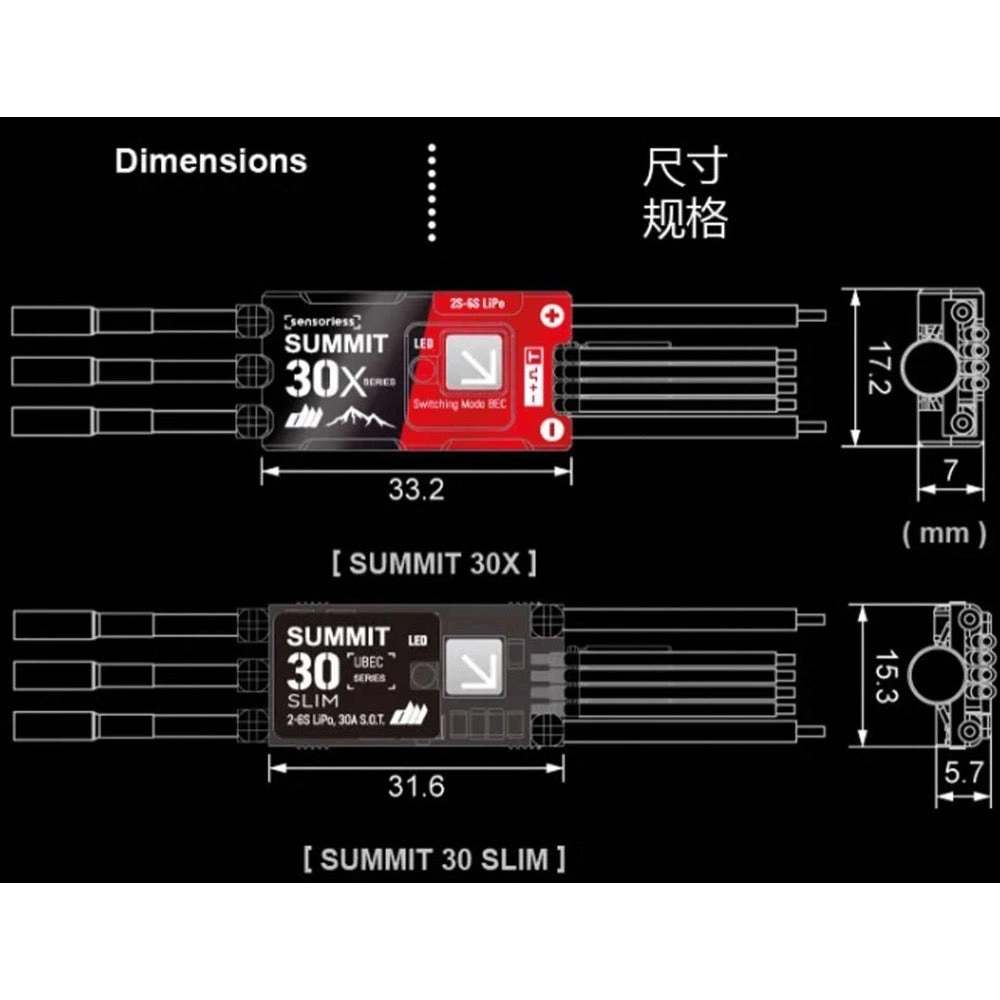

• Length (mm): 46.5
• Wide (mm): 15.3
• Height (mm): 5.7
