Product Detail

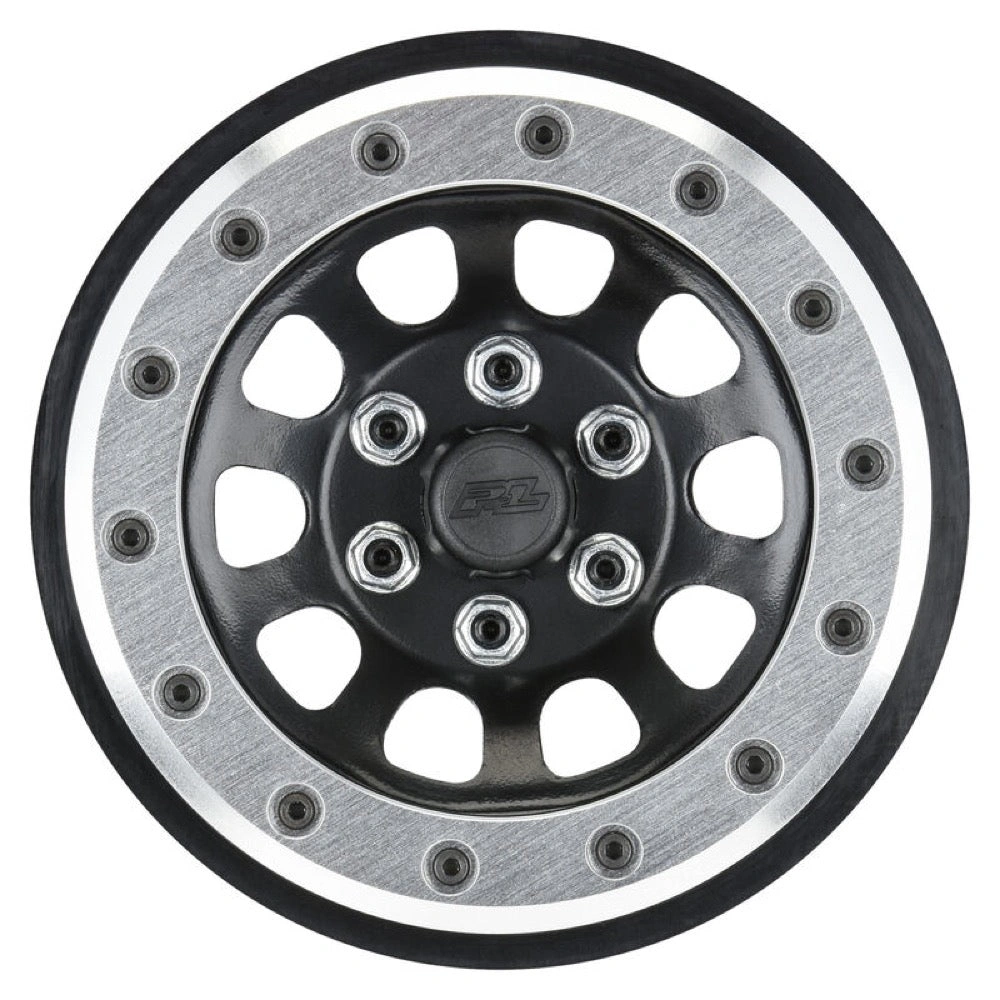

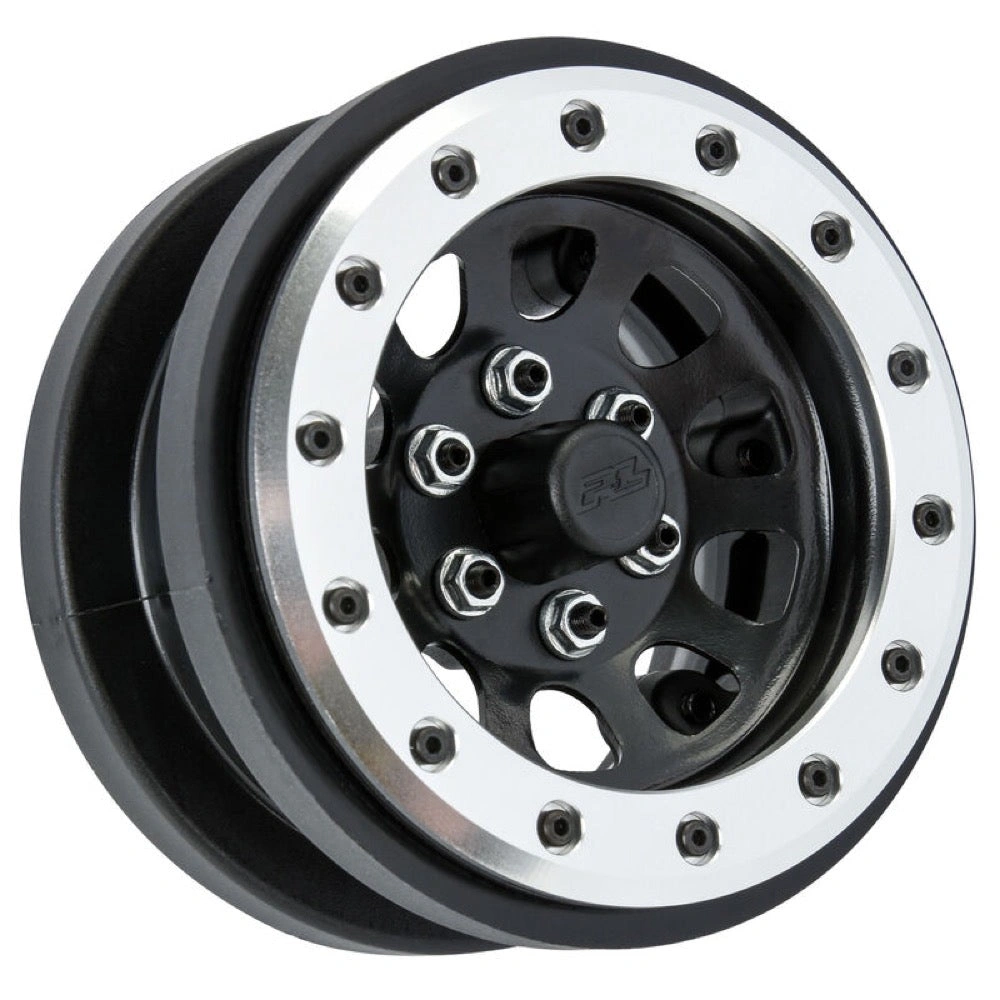

This is a pair of Steelies 2.9' Wheels for SCX6™. Introducing a unique, no-nonsense, trail-proven wheel solution for the Axial® SCX6™! The Steelies Wheel features a Black Powder Coated Stamped Steel wheel face with anodized aluminum rings pre-installed into the wheel face.

This Internal bead-loc style wheel can be configured with 2 different offsets. Install the +2mm offset hex or +10mm offset hex to push the wheel further outwards, giving you more stability and clearance for wide tires.

Give your SCX6™ a tough look with Pro-Line's Steelie wheels!

Assembly Instructions

• Stuff the Internal Bead-loc Ring into your tire, making sure it is centered and fully seated.

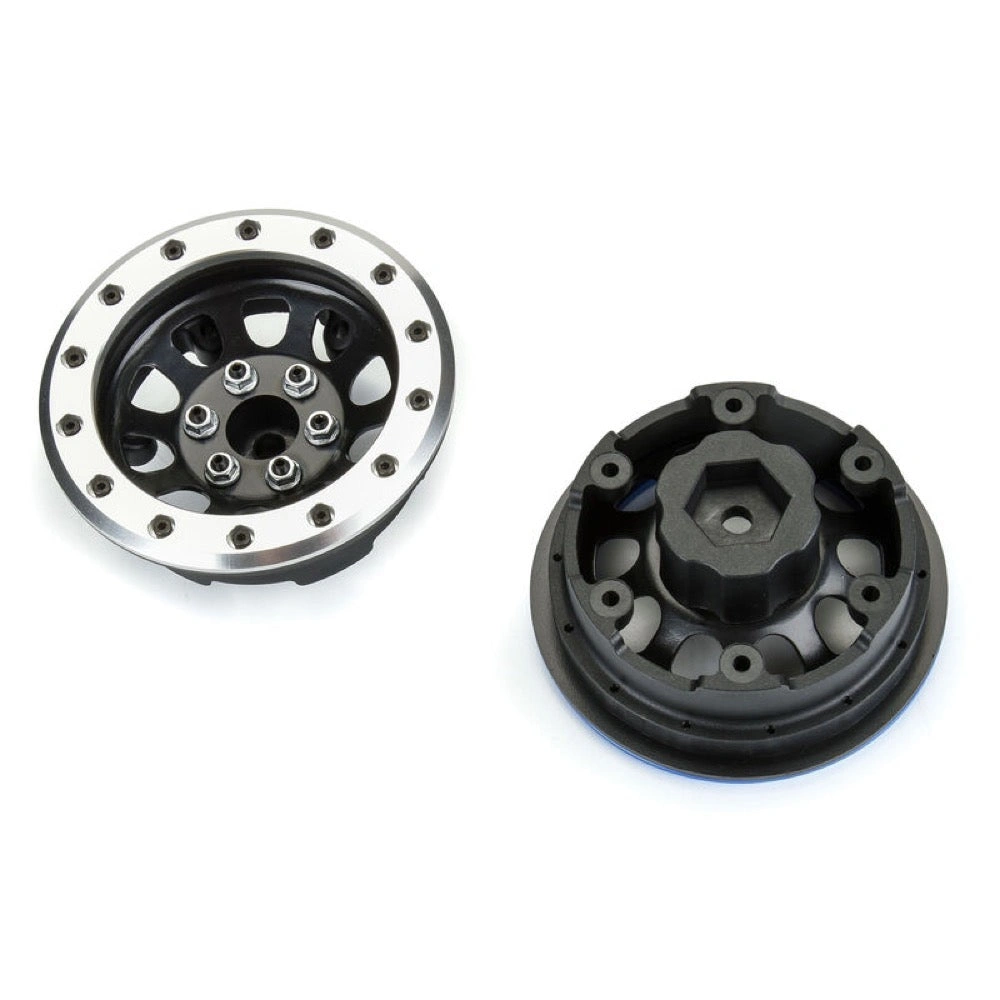

• Assemble the Steel Front Face and the Back Face using (6) M4x14 BHCS, capturing the tire bead.
• Choose your offset:
  For a +2mm offset, (pre-installed) align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
  For a +10mm offset, align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
• Install the Wheel & Tire onto your SCX6™ using the stock wheel nut
• Install the P-L Hub Cab by pressing it into the wheel center.
• Please note: All tires & wheels are sold in pairs, unless otherwise noted

Features

• Stamped Steel Wheel Face
• Powder Coated for Durability
• Tough Scale Looks
• Anodized Aluminum Rings
• Hex Adapters for +2 or +10mm offsets
• Inner Tire / Outer Wheel Diameter: 2.9 in
• Outer Diameter: 2.9' (74 mm)

Contents

• (2) Steelies Stamped Steel Wheel face
• (2) Inner Wheel Face
• (2) Internal Bead-Loc Ring
• (2) +2mm Hex Adapter
• (2) +10mm Hex Adapter
• (2) P-L Hub Cab
• (12) M3x20 Set Screw with Flange Nut
• (12) M4x14 BHCS
